Air Ring Gauges

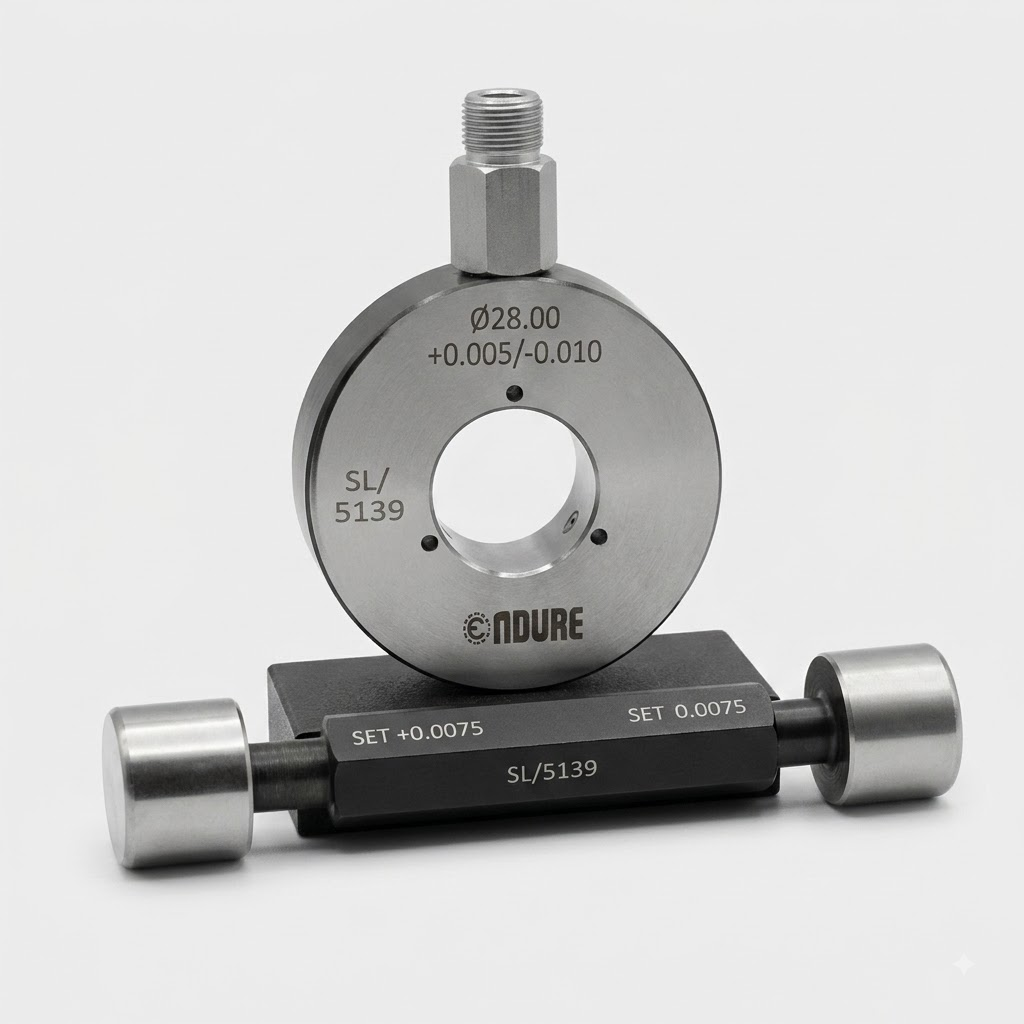

Air Ring Gauges Used for quick and easy checking of outer diameter. Available in standard 2 jets for checking size, taper, ovality. 3 jets at 120 degree for average size & lobbing, when od grounds - center less. Can be supplied with multiple jets at multiple levels to check Taper for custom depth. Hard chrome plated for extended life Manufactured in carbide sleeve for high-volume inspection Air Ring Gauges can be provided as bench mounted for easy calibration.

High/ Low Masters (as per component tolerance) are provided with air ring for setting of analog/ electronic measuring instruments. Made from OHNS steel, hardened and tempered to 60-62 HRC. Manufacturing Range: from Dia. 1.5 mm to Dia. 250 mm Subzero treated at -80°C for Dimensional Stability. Calibrated at 20°C under Standards Room conditions. Gauges are delivered in plastic case, providing anti-corrosion effect and impact resistance with Calibration Certificate (NABL/NPL Accredited).

• Used for quick and easy checking of Outer Diameter (OD).
• Available with standard 2 jets for checking size, taper, and ovality.

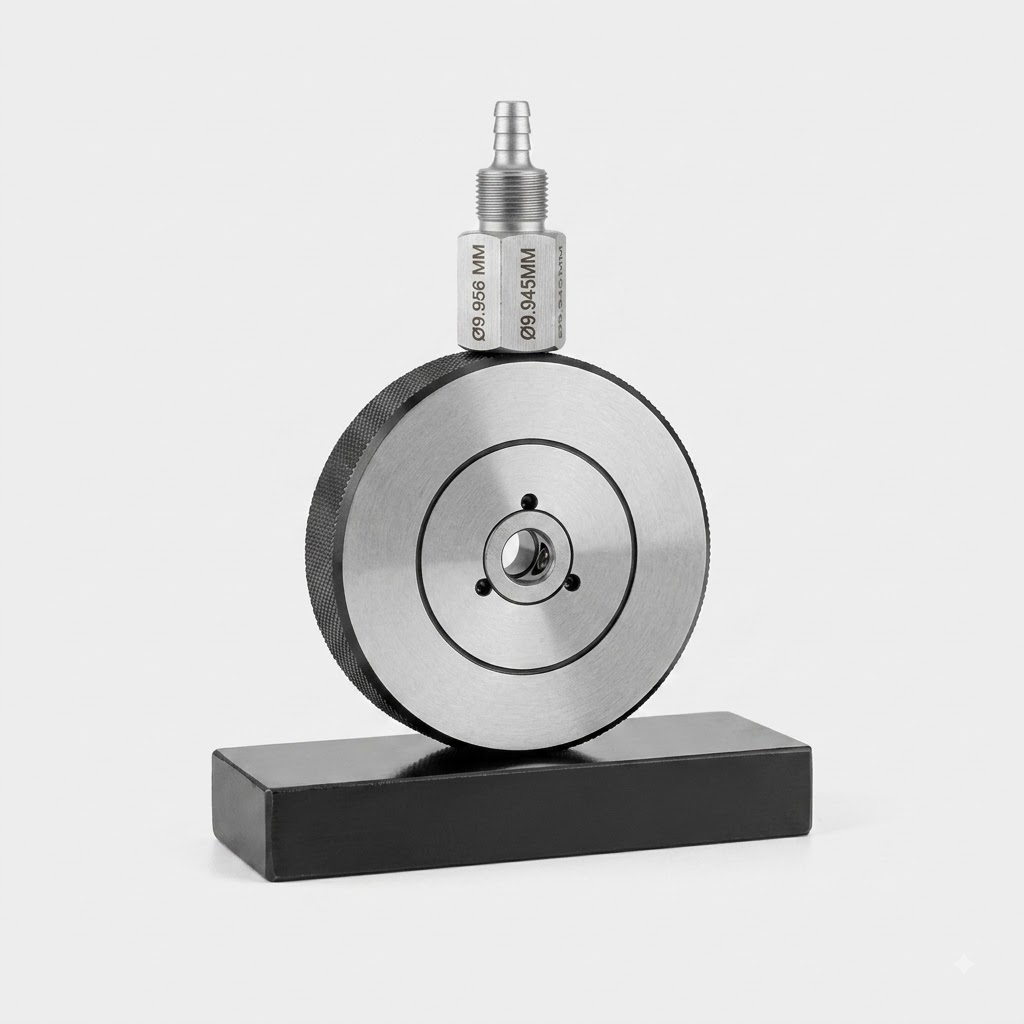

• Available with 3 jets positioned at 120° for checking average size and lobbing of centerless-ground outside diameters.
• Multiple jets at multiple levels can be provided for checking taper at customized depths.
• Hard chrome plated for extended service life and improved wear resistance.
• Available with Carbide Sleeve for high-volume inspection applications.

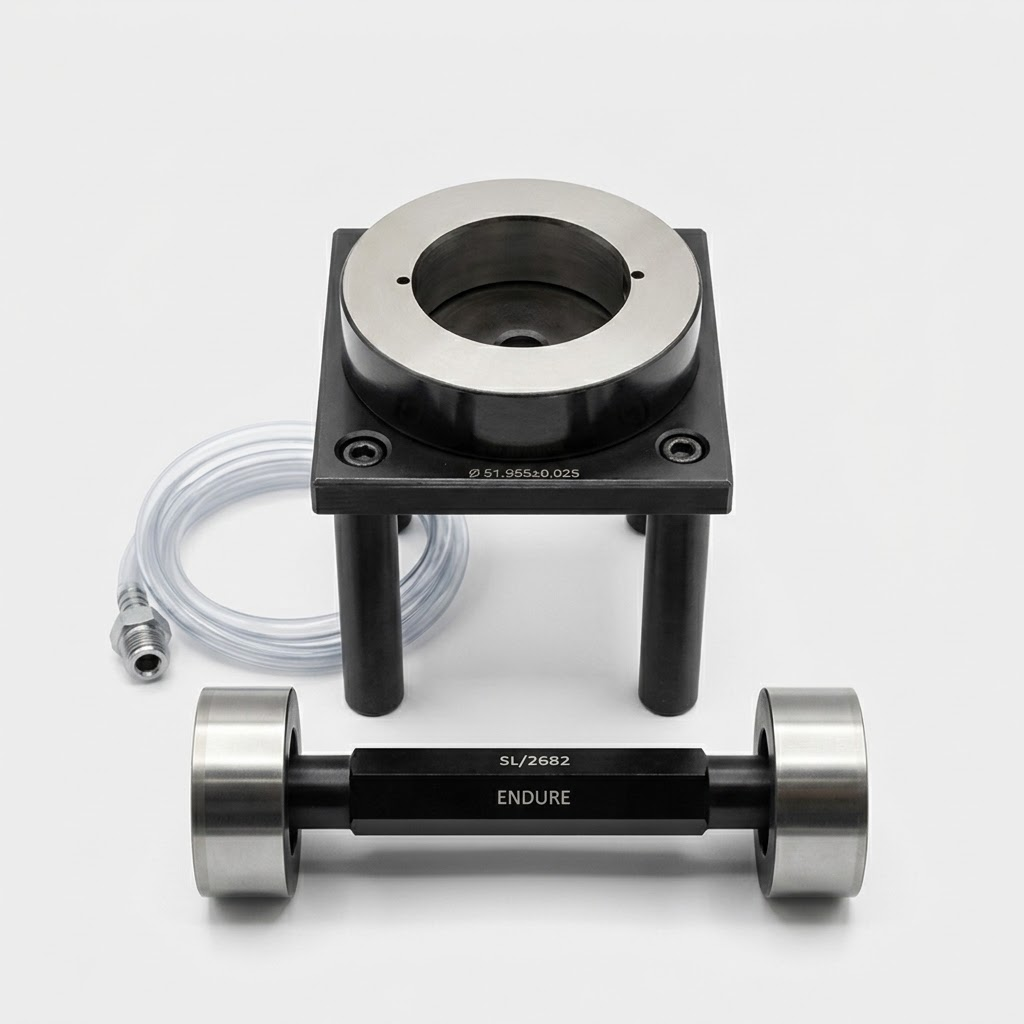

• Air Ring Gauges can be provided in bench-mounted configurations for easy calibration.
• High / Low Masters, as per component tolerance, are provided with Air Ring Gauges for setting analog or electronic measuring instruments.
• Made from OHNS Steel, hardened and tempered to 60-62 HRC.
• Manufacturing Range: Dia. 1.5 mm to Dia. 250 mm.
• Subzero treated at -80°C for Dimensional Stability.
• Calibrated at 20°C under Standards Room conditions.
• Gauges are delivered in plastic case, providing anti-corrosion effect and impact resistance with Calibration Certificate (NABL/NPL Accredited).
