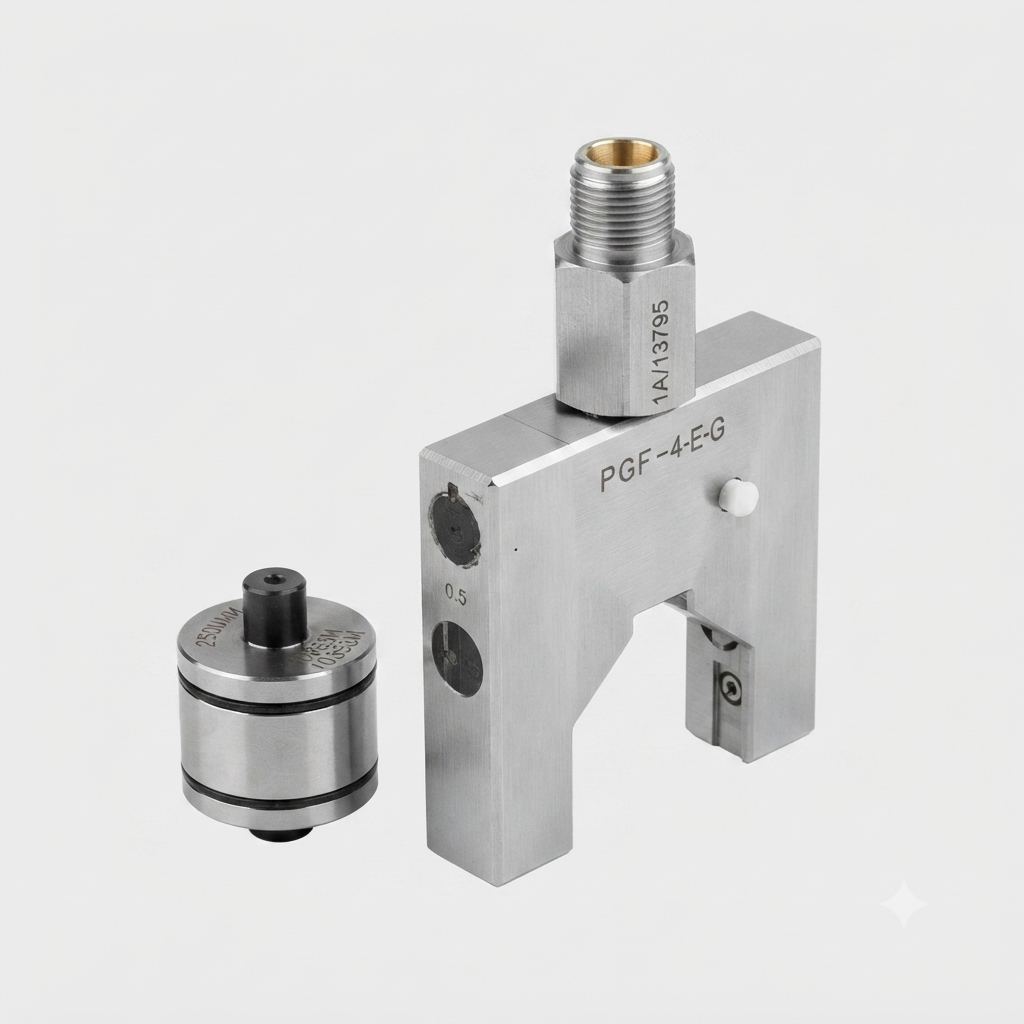

Air Snap / Caliper Gauges

Air Snap / Caliper Gauges are used for measuring diameters of between centers jobs/ shaft or interrupted shafts like crankshafts, con-rod. Air calipers are suppled as hand held type. “V” support for perfect centering and stability with tungsten carbide. Available with multi jets for multi location measurement. Available with bench mounted for checking small dia as per custom requirements. Air caliper can be designed for minimum checking land, special/ super blind shafts or multi dia/ location.

High/ Low Masters (as per component tolerance) are provided with air caliper for setting of analog/ electronic measuring instruments. Made from OHNS steel, hardened and tempered to 60-62 HRC. Manufacturing Range: from Dia. 1.5 mm to Dia. 250 mm Subzero treated at -80°C for Dimensional Stability. Calibrated at 20°C under Standards Room conditions. Gauges are delivered in plastic case, providing anti-corrosion effect and impact resistance with Calibration Certificate (NABL/NPL Accredited).

• Suitable for measuring diameters of between-centers jobs, shafts, and interrupted shafts such as crankshafts and connecting rods.
• Air Calipers are available in handheld configurations for convenient production inspection.
• "V" support with Tungsten Carbide provides accurate centering, excellent stability, and superior wear resistance.
• Available with multiple jets for multi-location measurement.

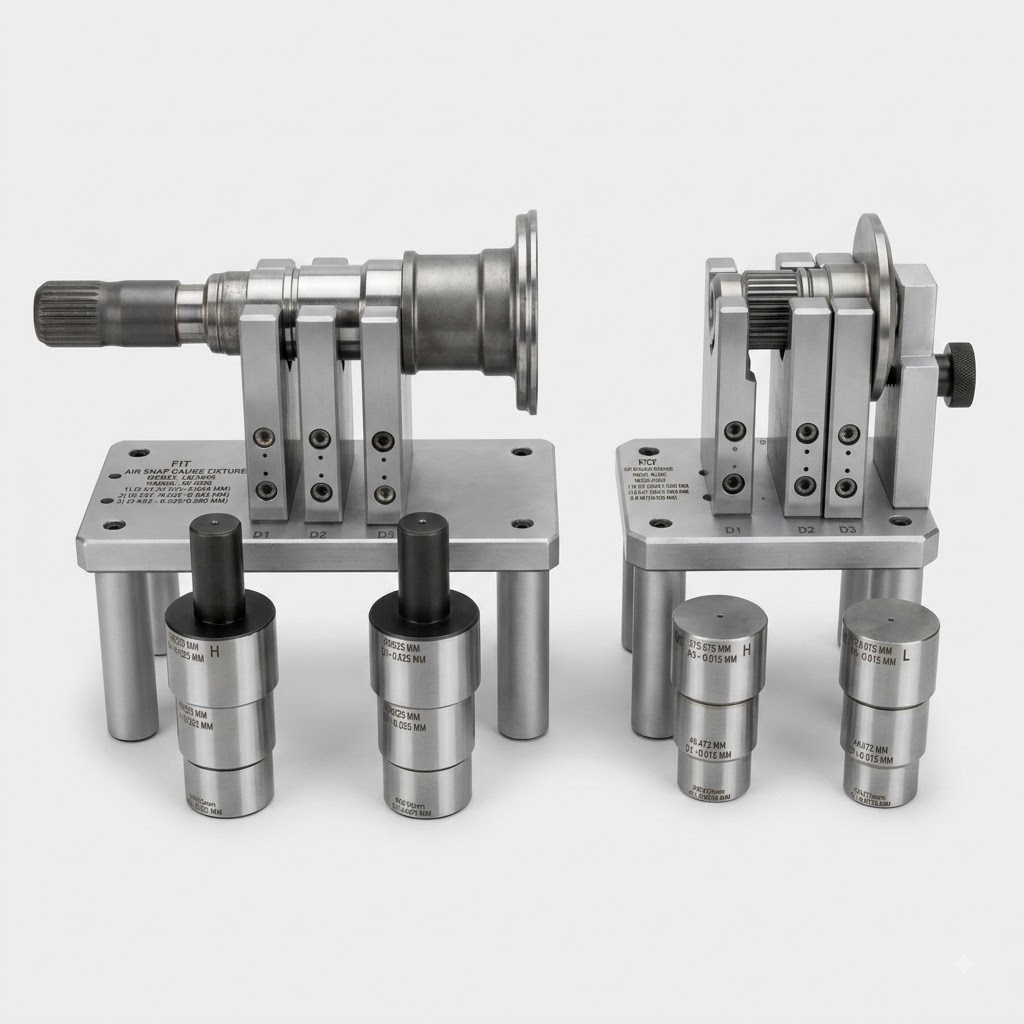

• Bench-mounted configurations are available for checking small diameters as per customized requirements.
• Air Calipers can be designed for minimum checking land, special/super-blind shafts, and multiple diameter or multi-location inspection.

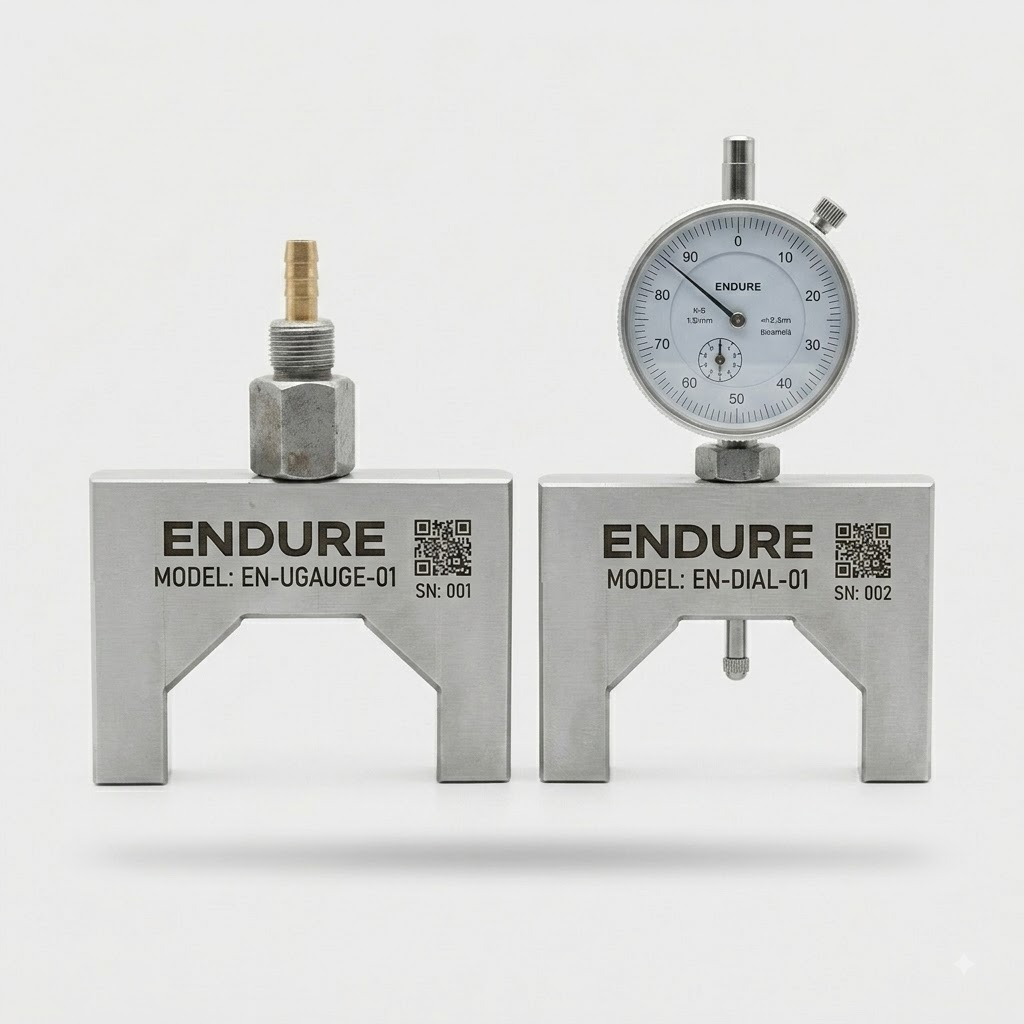

• High / Low Masters, as per component tolerance, are provided with Air Calipers for setting analog or electronic measuring instruments.
• Made from OHNS Steel, hardened and tempered to 60-62 HRC.
• Manufacturing Range: Dia. 1.5 mm to Dia. 250 mm.
• Subzero treated at -80°C for Dimensional Stability.
• Calibrated at 20°C under Standards Room conditions.
• Gauges are delivered in plastic case, providing anti-corrosion effect and impact resistance with Calibration Certificate (NABL/NPL Accredited).
