Relation Gauges / Fixtures

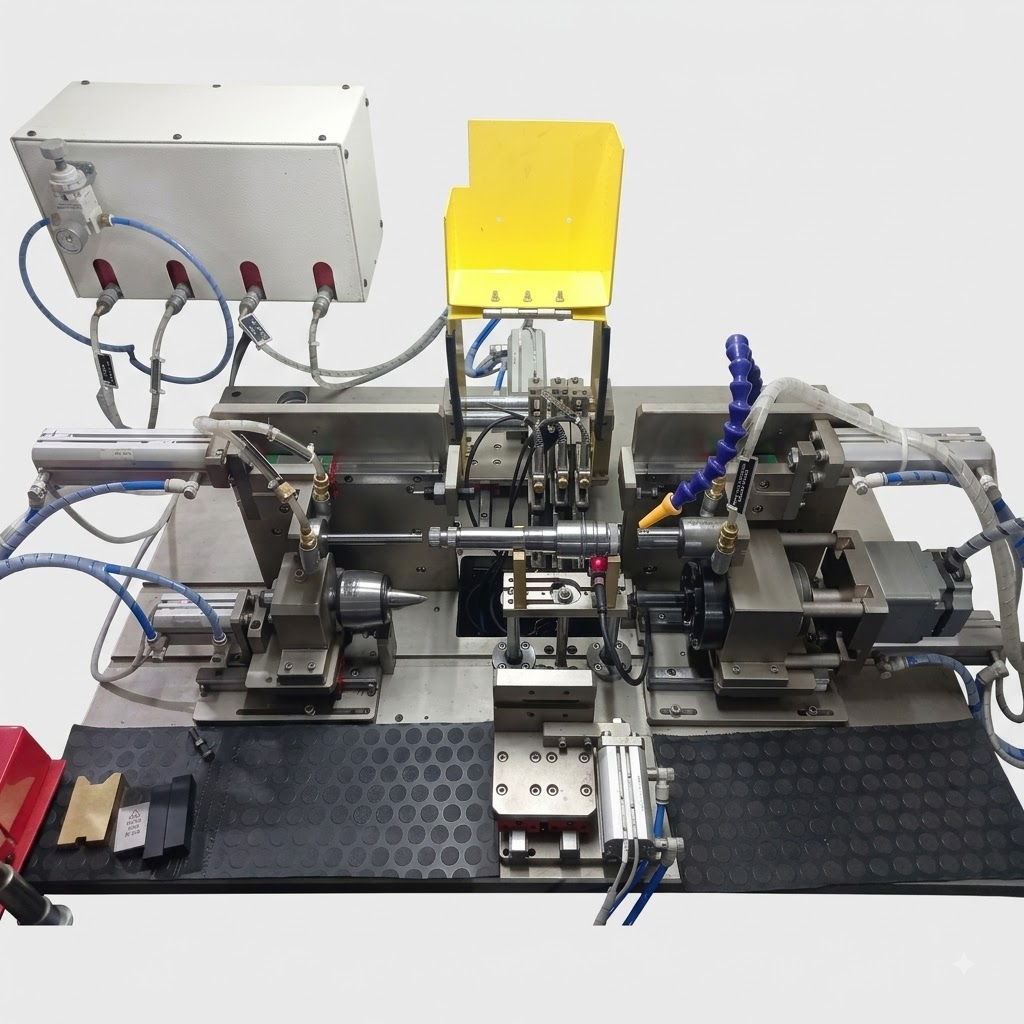

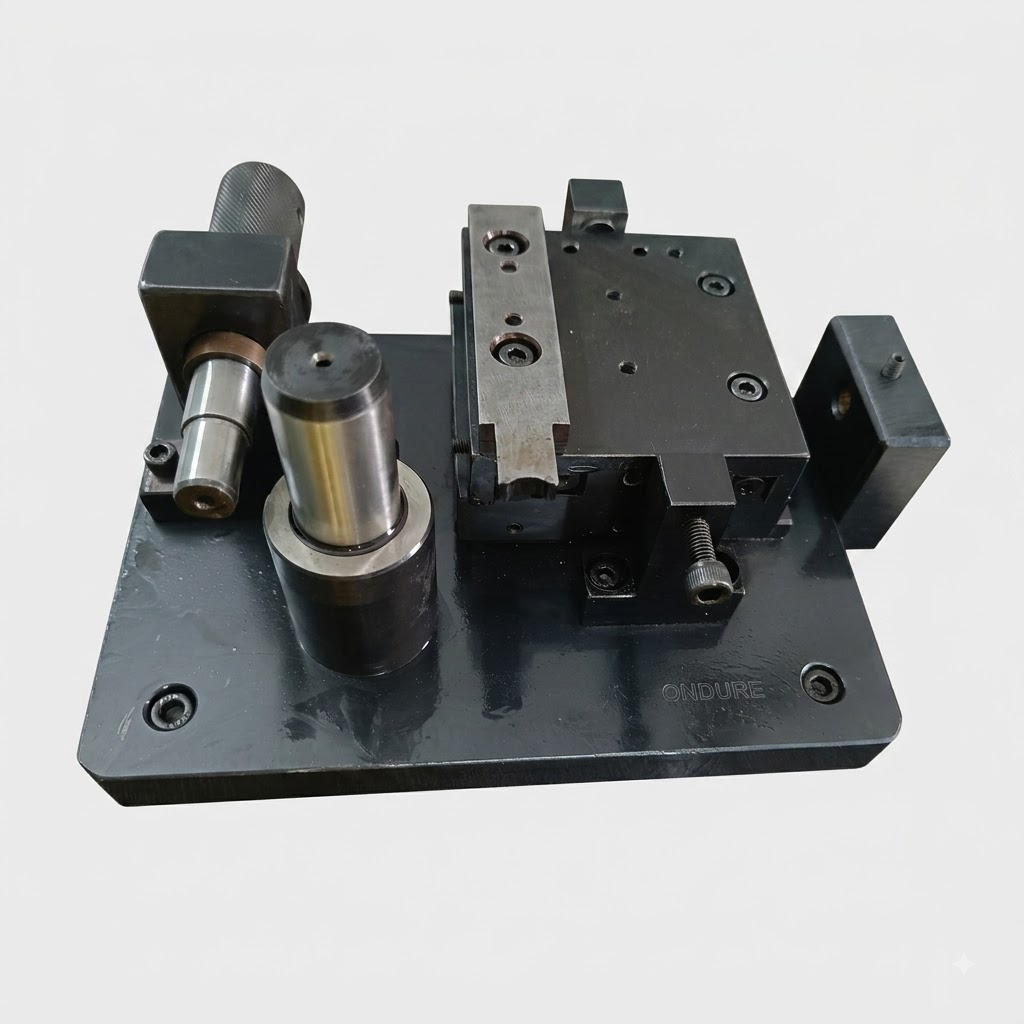

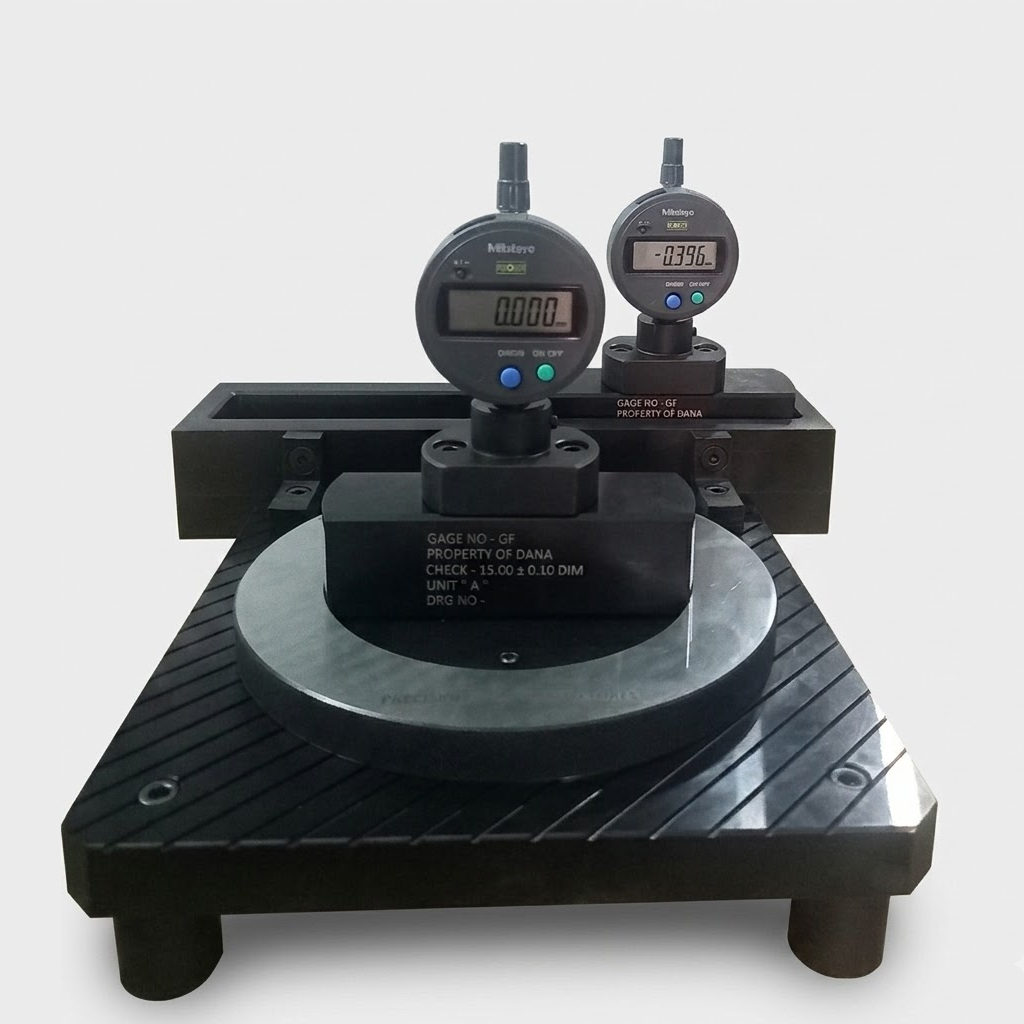

Squareness Checking Gauge-Fixtures and Step Chamfer Depth-Height Checking Fixtures are precision inspection tools designed to verify critical geometric and dimensional features such as squareness, perpendicularity, step height, chamfer dimensions, and depth measurements. These fixtures ensure accurate alignment and dimensional consistency of machined components, helping manufacturers maintain tight tolerances and superior product quality. Manufactured from premium-grade tool steel with hardened and precision-ground components, they provide exceptional accuracy, repeatability, and long service life.

Manufactured in accordance with ISO, DIN, ASME, IS, and customer-specific standards, these checking fixtures are widely used in automotive, aerospace, hydraulic equipment, valve manufacturing, precision machining, tool rooms, and quality control laboratories. Available in manual, dial indicator-based, electronic, and fully customized configurations, they enable fast inspection, minimize operator error, improve production efficiency, and ensure reliable compliance with international quality standards.
