Pneumatic Checking Fixtures

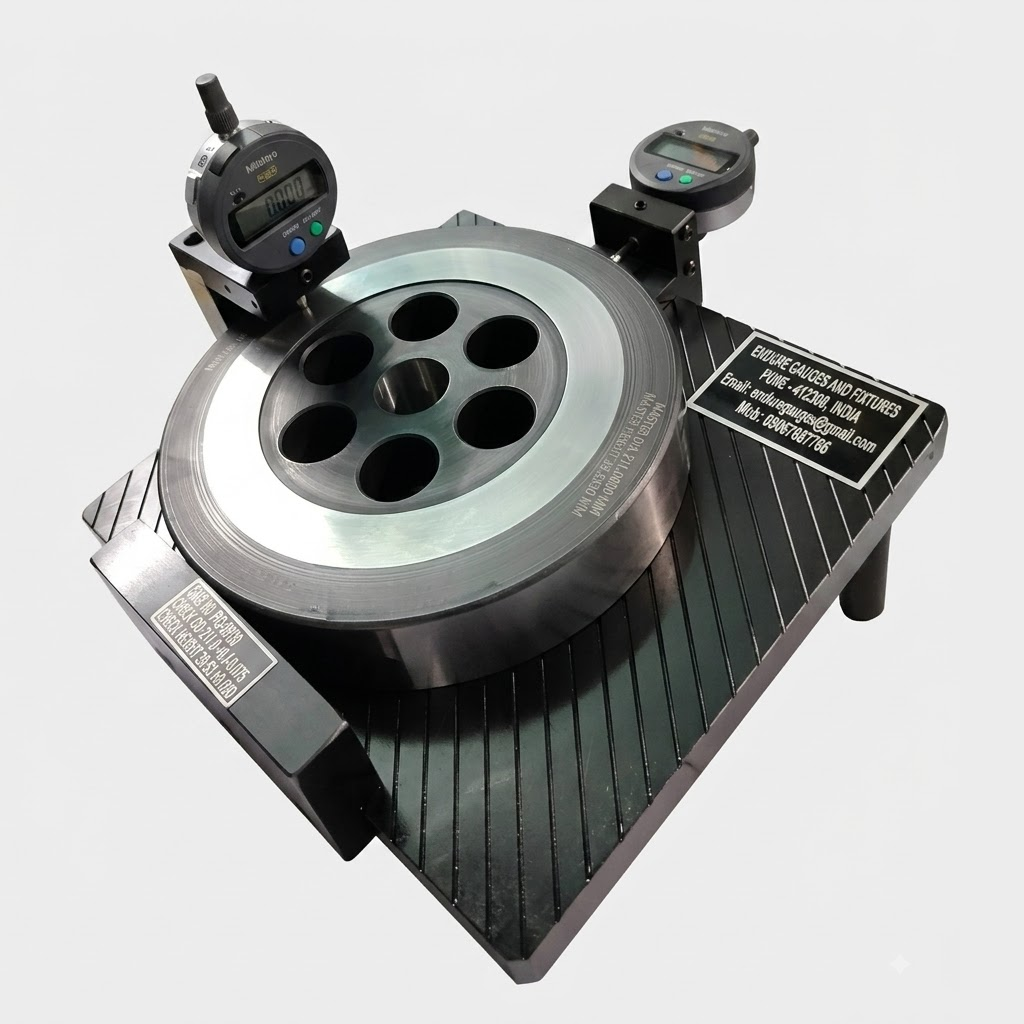

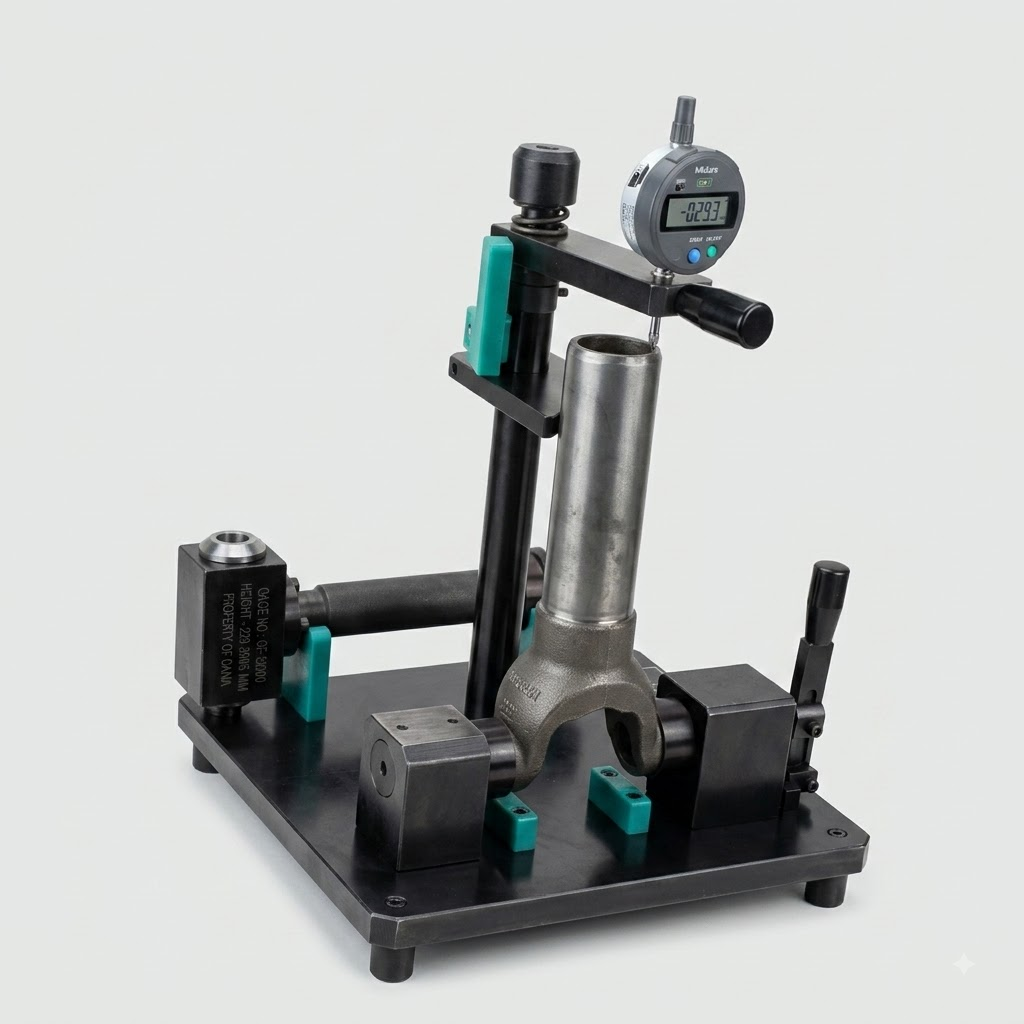

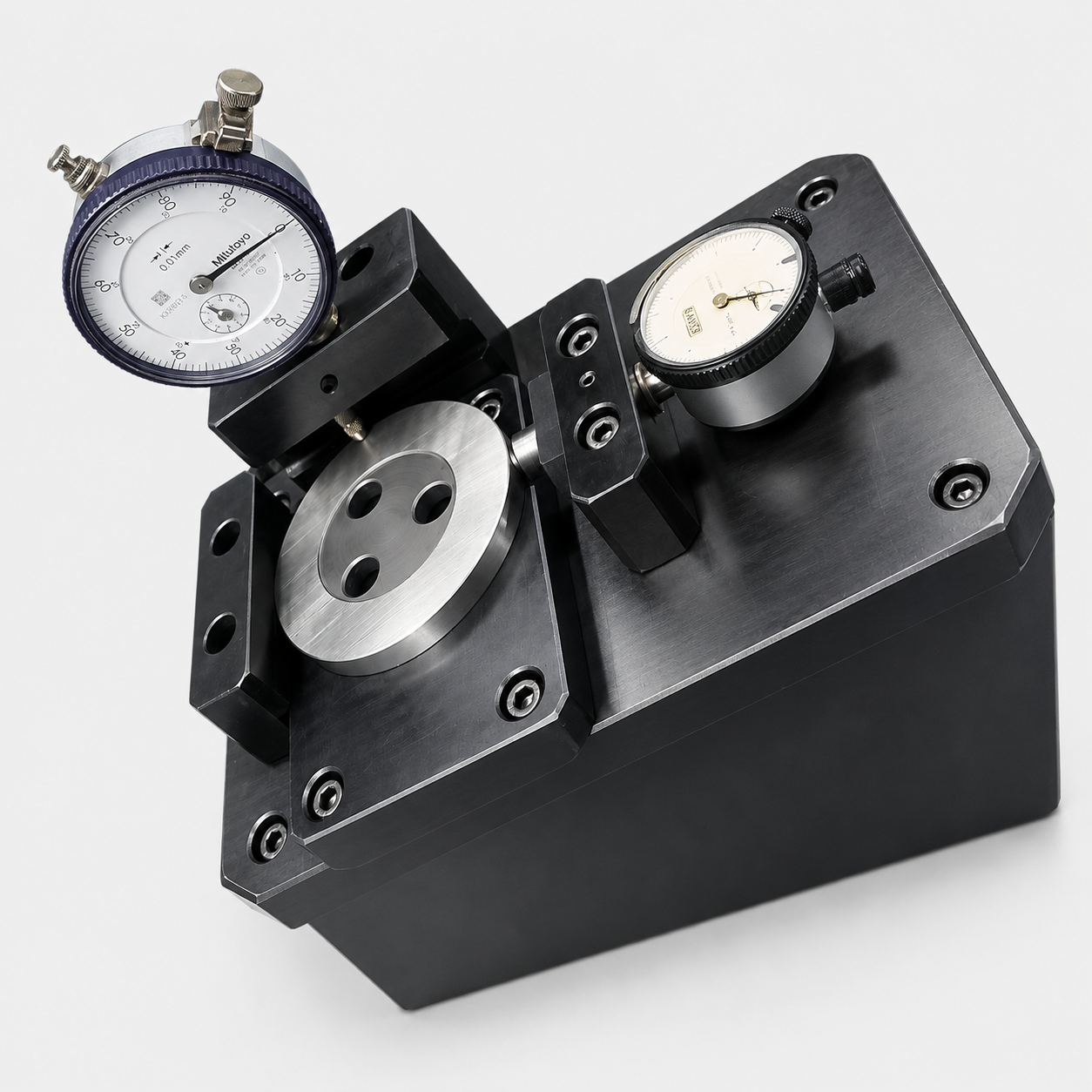

Height Checking Fixtures, ID & OD Checking Fixtures, and Straightness Checking Fixtures are precision inspection systems designed to accurately verify critical dimensional and geometric parameters of machined components. These fixtures enable quick and repeatable measurement of component height, internal and external diameters, straightness, alignment, and dimensional relationships, ensuring consistent product quality and compliance with engineering specifications. Manufactured from premium-grade tool steel with hardened, precision-ground components, they provide exceptional accuracy, durability, and long-term performance in demanding production environments.

Designed in accordance with ISO, DIN, ASME, IS, and customer-specific standards, these checking fixtures are widely used in automotive, aerospace, hydraulic equipment, bearing manufacturing, machine tool industries, precision engineering, and quality control laboratories. Available in manual, dial indicator, electronic, pneumatic, and fully customized configurations, they offer fast inspection, reduced operator dependency, improved process capability, and reliable dimensional verification for high-volume manufacturing applications.
