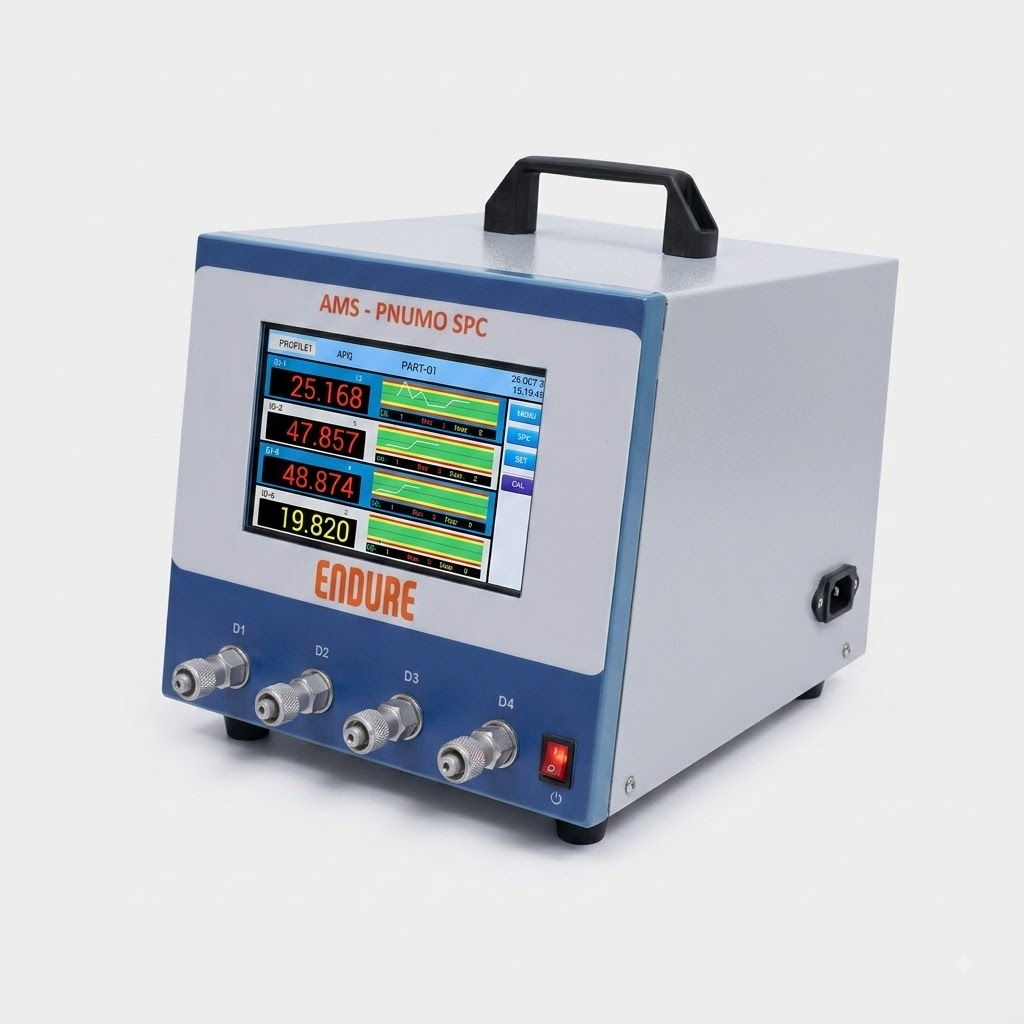

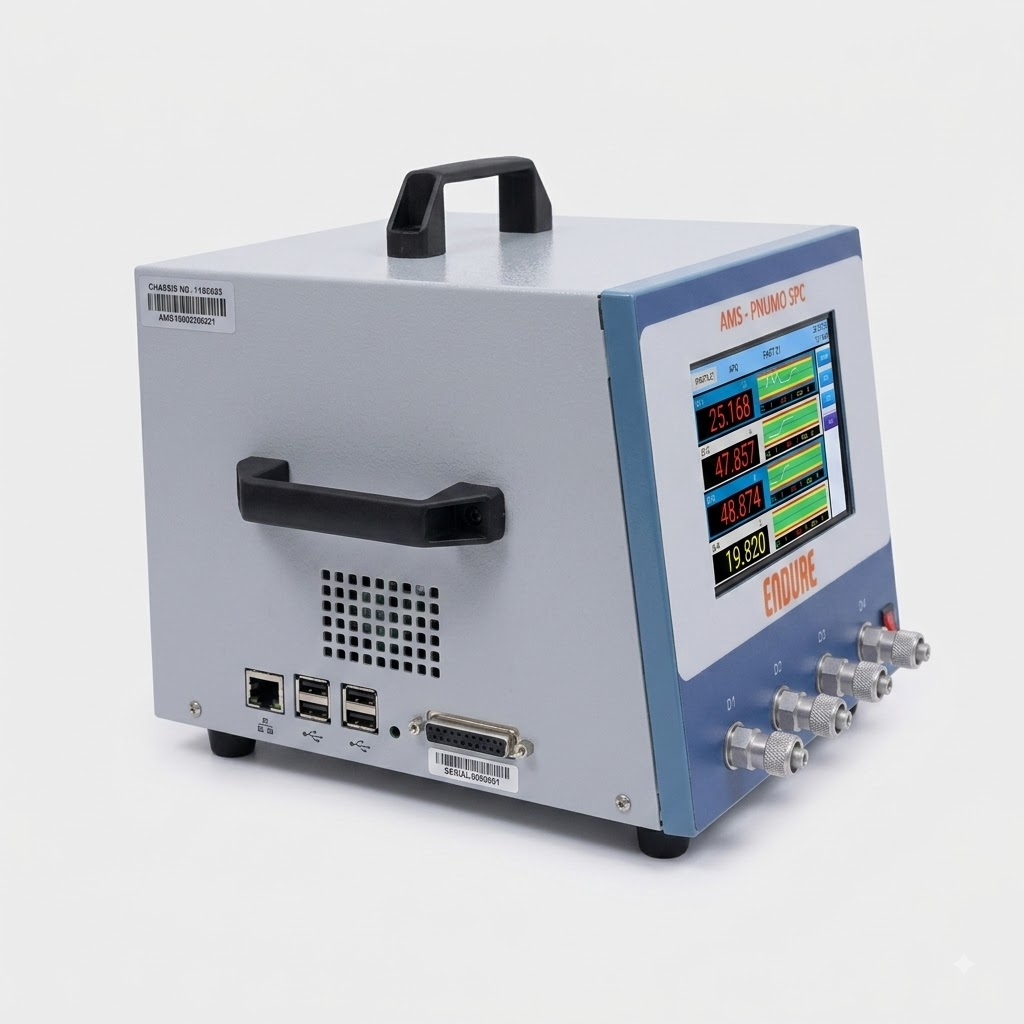

SPC - Air Electronic Gauge Unit

SPC - Air Electronic Gauge Unit is an advanced precision air gauging system featuring a 7-Segment Tri-Coloured LED Display and Touch Screen Air Electronic Unit. It is designed for accurate dimensional inspection, real-time process monitoring, Statistical Process Control (SPC), and production quality control applications.

The system is available with 1 to 16 Channel TFT-Based Touch Screen SPC Display Units and supports absolute as well as comparative measurement. Advanced functions including Cp, Cpk, tolerance monitoring, run charts, data storage, and PC connectivity provide comprehensive control over manufacturing and inspection processes.

• 7-Segment Tri-Coloured LED Display with Touch Screen Air Electronic Unit.
• Channels: 1 to 16 Channel TFT-Based Touch Screen SPC Display Unit.
• Measuring Range: ±0.070 µm.
• Resolution: 0.0001 µm, 0.0005 µm, and 0.001 µm.
• Measurement display available in Absolute or Comparative form.
• Auto Calibration Facility with two Setting Masters.
• PC Connectivity through RS-232 Standard Interface for further processing, machine control through relay output, or SPC applications.
• Measurement Units: MM and Inch.
• Supports Static and Dynamic measurements including Maximum, Minimum, Average, and TIR.
• Power Supply: 230 Volt AC.
• 7.1″ High-Resolution Touch Screen Display.
• Cp and Cpk Process Capability Analysis.
• Calibration Reminder Facility.
• Tolerance Limit Setting with clear indications for Accept, Reject, and Rework.
• Run Chart for Process Capability monitoring and analysis.
• USB Module for easy measurement data output.
• Reading Data Storage Facility for measurement records and analysis.
• User-friendly operation with a virus-free system.
• Auto Drain Filter with Air Dryer for reliable pneumatic operation.
