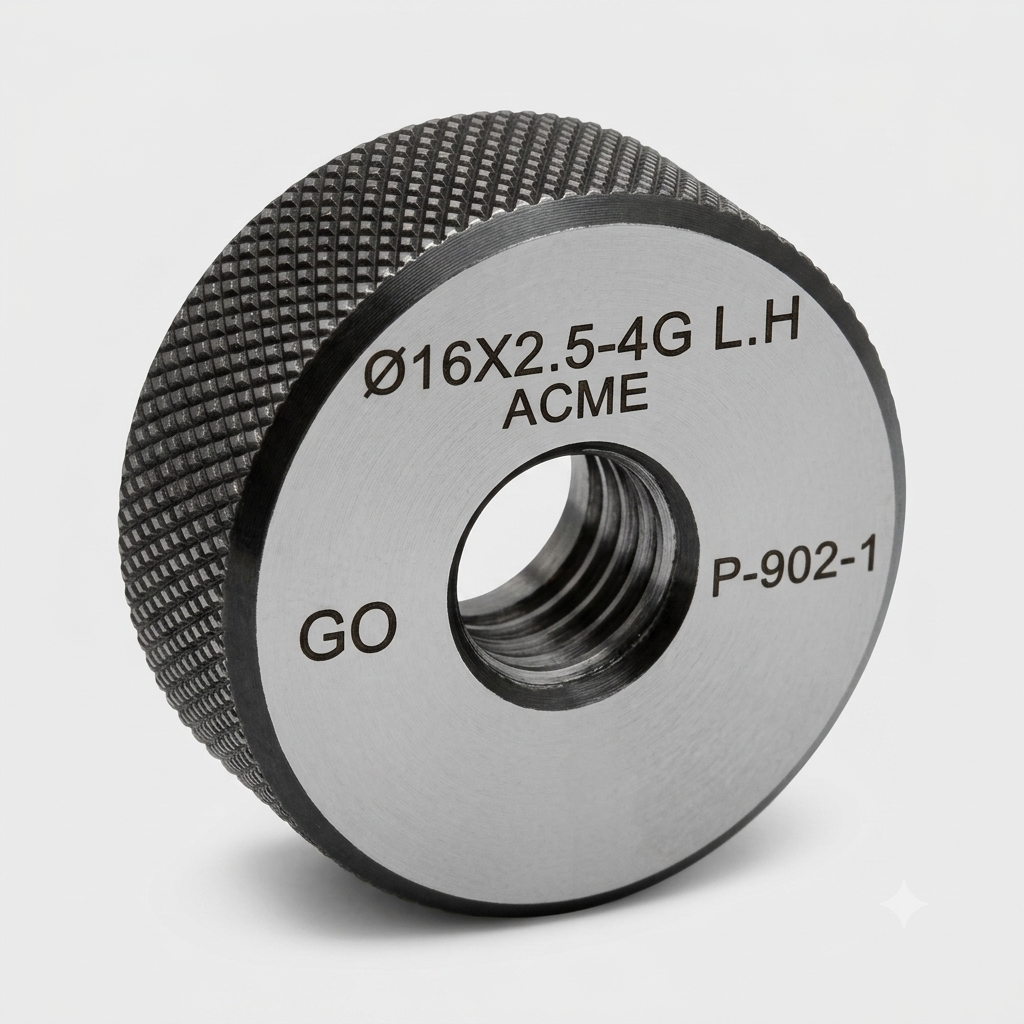

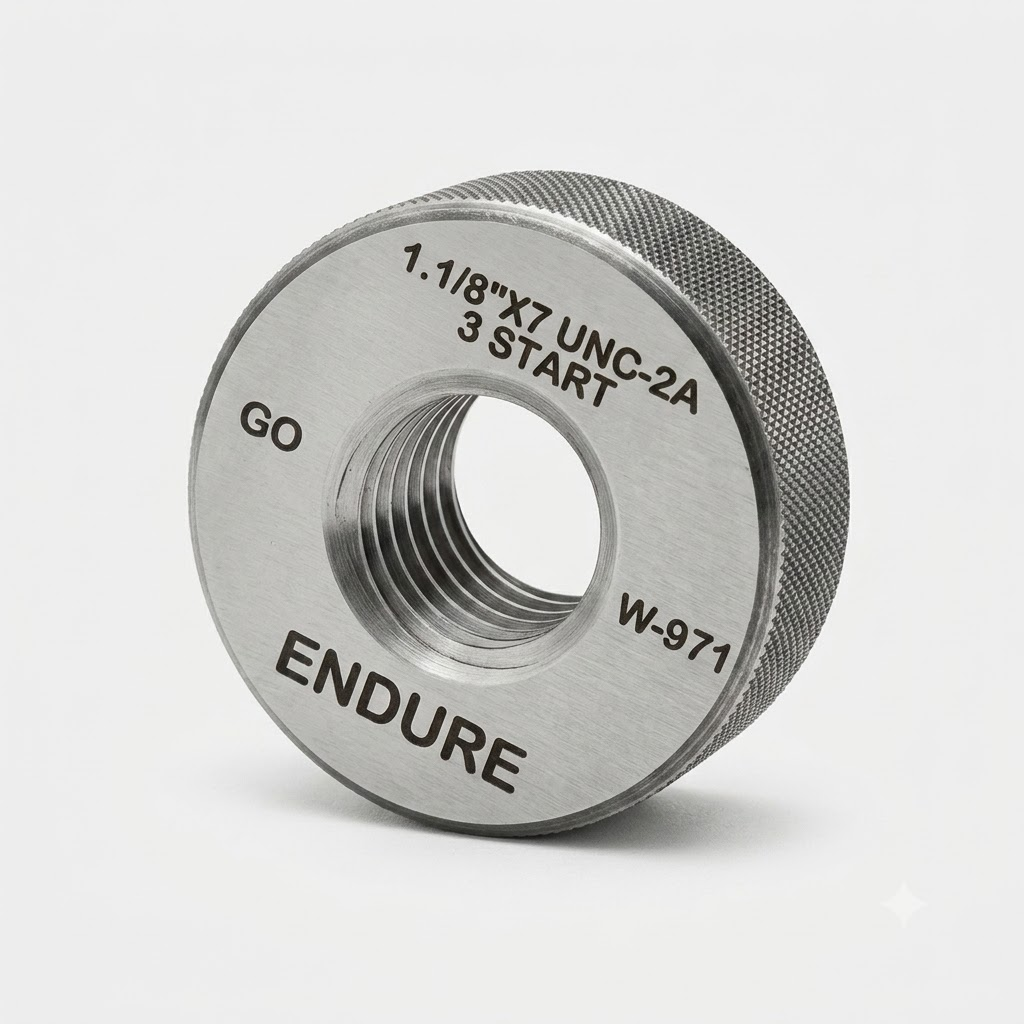

Multi-Start Thread Gauges

Multi-Start Thread Gauges are precision gauges designed for inspecting multi-start threads used in applications where quick axial travel with less rotational movement is required. Multi-start threads provide faster assembly and disassembly compared to conventional single-start threads.

Compared with single-start threads, multi-start threads can accommodate higher axial thrust within restricted angles of rotation, provide higher operating efficiency, and reduce the tendency of thread locking. These characteristics make them suitable for demanding mechanical and power-transmission applications.

Multi-start threads are commonly used in power-transmitting screws, valve spindles, and other precision mechanical components where rapid linear movement and controlled rotational travel are required.

• Gauges are manufactured from 2-Start and 3-Start configurations up to 16-Start thread configurations.
• Designed for applications requiring quick axial travel with reduced rotational movement.
• Suitable for inspection of multi-start threads used in power-transmitting screws, valve spindles, and similar mechanical components.
• Manufactured in hardened, precision hand-lapped OHNS Steel material to provide superior accuracy, excellent wear resistance, and optimum finish.
• Subzero treated at -80°C for Dimensional Stability.
• Calibrated at 20°C under Standards Room conditions.
• Gauges are delivered in plastic case, providing anti-corrosion effect and impact resistance with Calibration Certificate (NABL/NPL Accredited).
