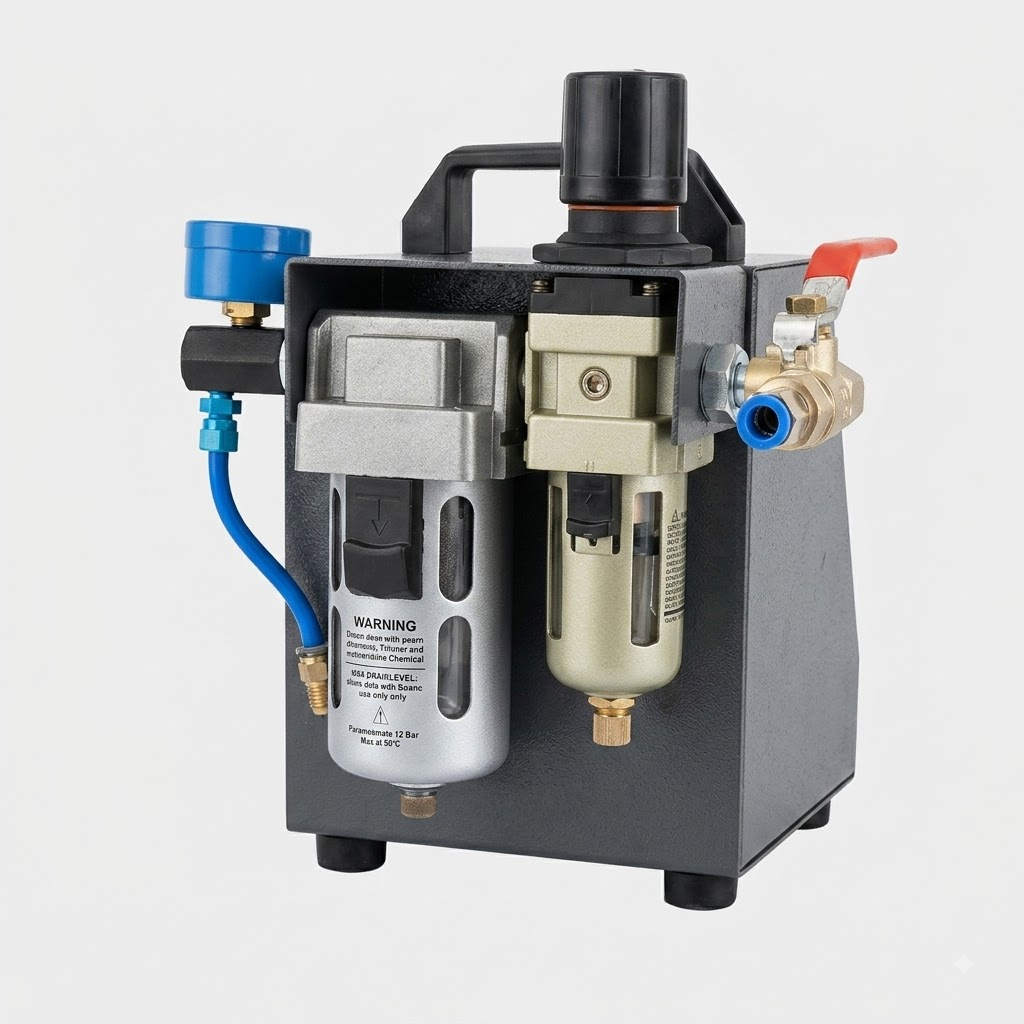

Dial Type Units

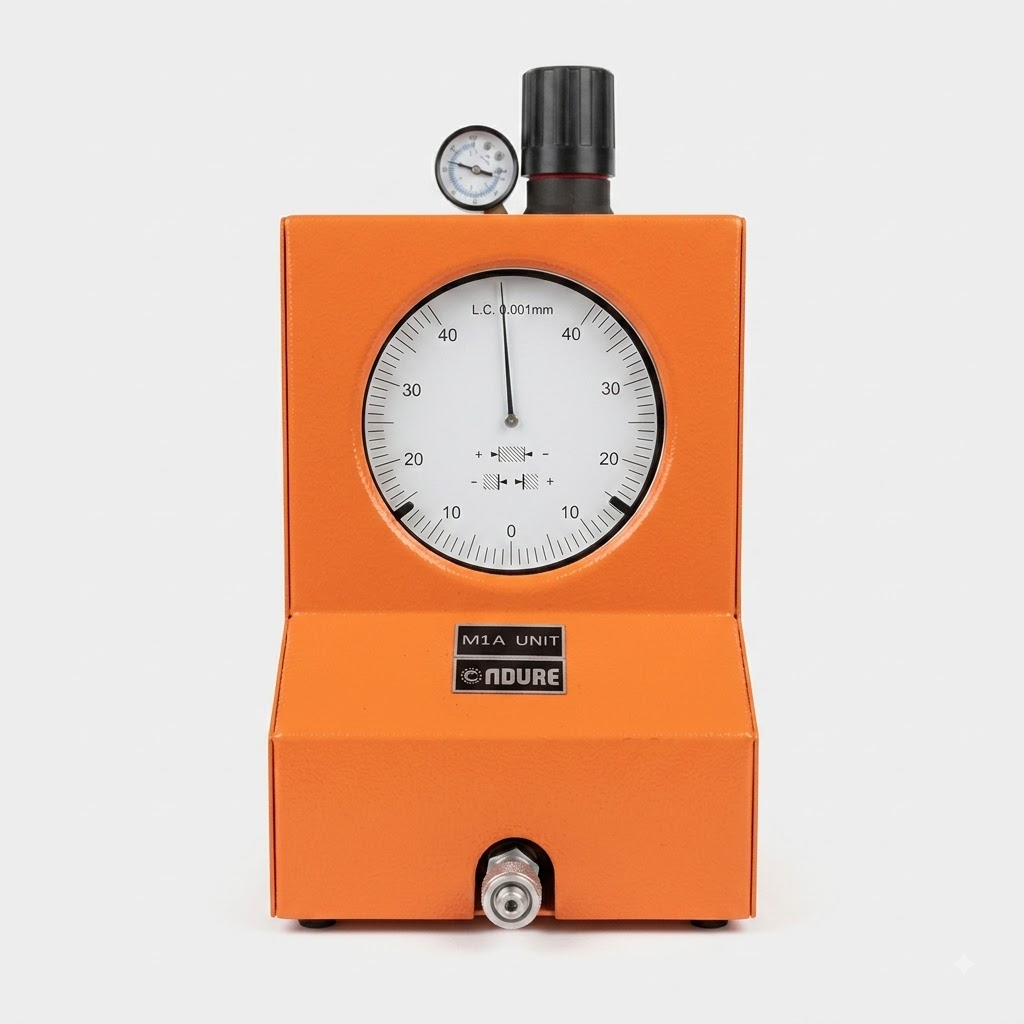

Dial Type Units are precision non-contact air gauging systems designed to provide long service life with minimum frictional wear. These units deliver fast, accurate, and repeatable dimensional measurements for production and quality control applications.

The high-pressure gauging system provides a high-speed response along with self-cleaning of the gauging area, enabling precise dimensional readings and reliable checking of parameters such as size, taper, and ovality. The units support both absolute and comparative measurement.

• Non-contact gauging provides long service life due to minimum frictional wear.

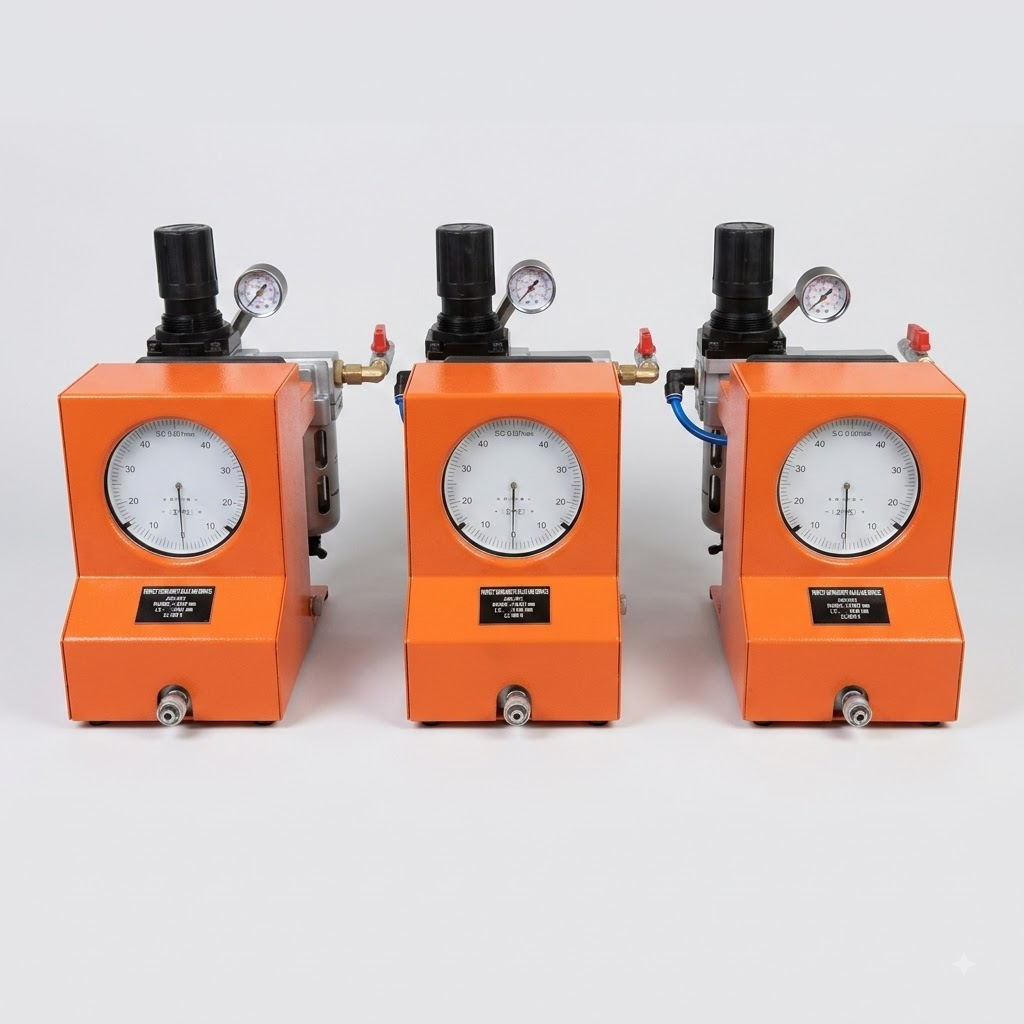

• Available in C-Jet, Model 1A, and Model 2A Units.
• High-pressure system provides high-speed response and self-cleaning of the gauging area for precise dimensional readings, taper, and ovality measurement.
• Supports absolute and comparative measurement.
• Auto calibration facility for convenient and reliable operation.
• Required Air Pressure: 4-10 Kg/cm².
• Operating Pressure: 1.75 Kg/cm².
• Air Consumption: 30-46 LPM.
• Repeatability: 1 Division.
• Available measurement ranges: ±0.020 mm, ±0.040 mm, ±0.060 mm, and ±0.080 mm.
• Least Count (LC) options: 0.0005 mm, 0.001 mm, 0.002 mm, and 0.005 mm respectively.
