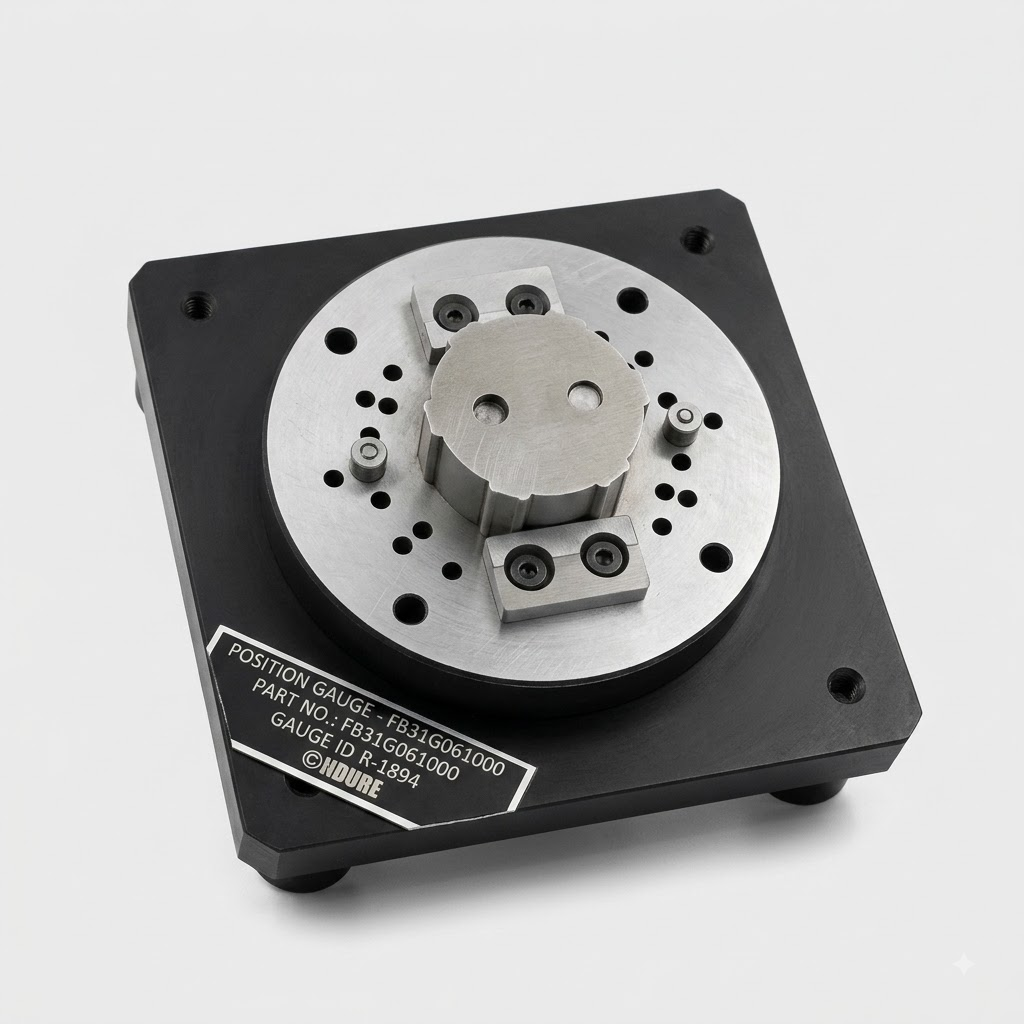

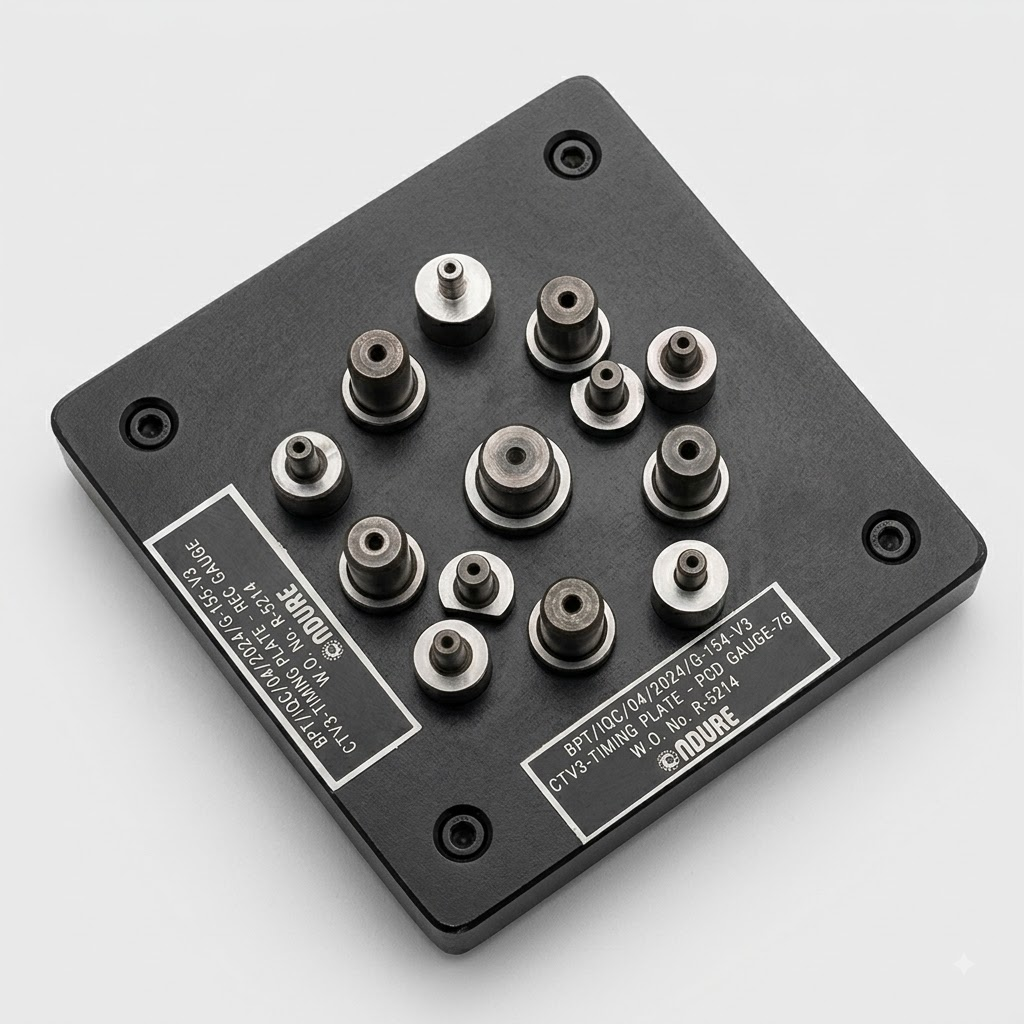

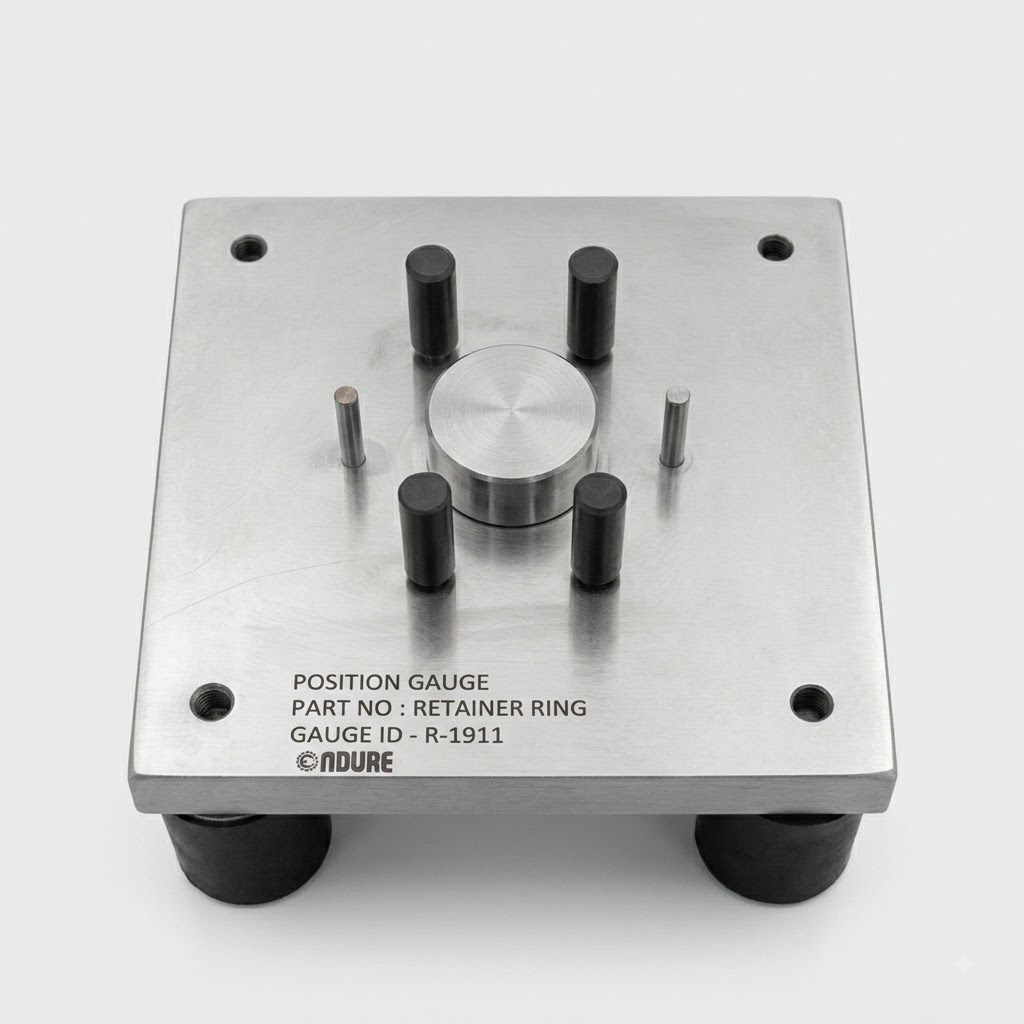

Position Checking Gauges

CD-PCD Checking and Tap Hole Position Gauges are precision inspection tools designed for verifying Centre Distance (CD), Pitch Circle Diameter (PCD), and the positional accuracy of tapped and drilled holes in precision-engineered components. These gauges provide quick, reliable, and repeatable inspection of hole patterns, ensuring proper alignment, accurate spacing, and assembly compatibility. Manufactured from premium-grade EN31, Tool Steel, Carbide, or D2 Steel, they are hardened, precision ground, and lapped to deliver exceptional dimensional accuracy, superior wear resistance, and extended service life.

Manufactured in accordance with ISO, DIN, ANSI, ASME, BS, IS, and customer-specific specifications, CD-PCD Checking and Tap Hole Position Gauges are widely used in automotive, aerospace, hydraulic equipment, valve manufacturing, machine tools, precision engineering, and quality control departments. Available in standard and customized configurations, these gauges ensure fast inspection, reduced setup time, consistent quality verification, and reliable compliance with international manufacturing standards.
