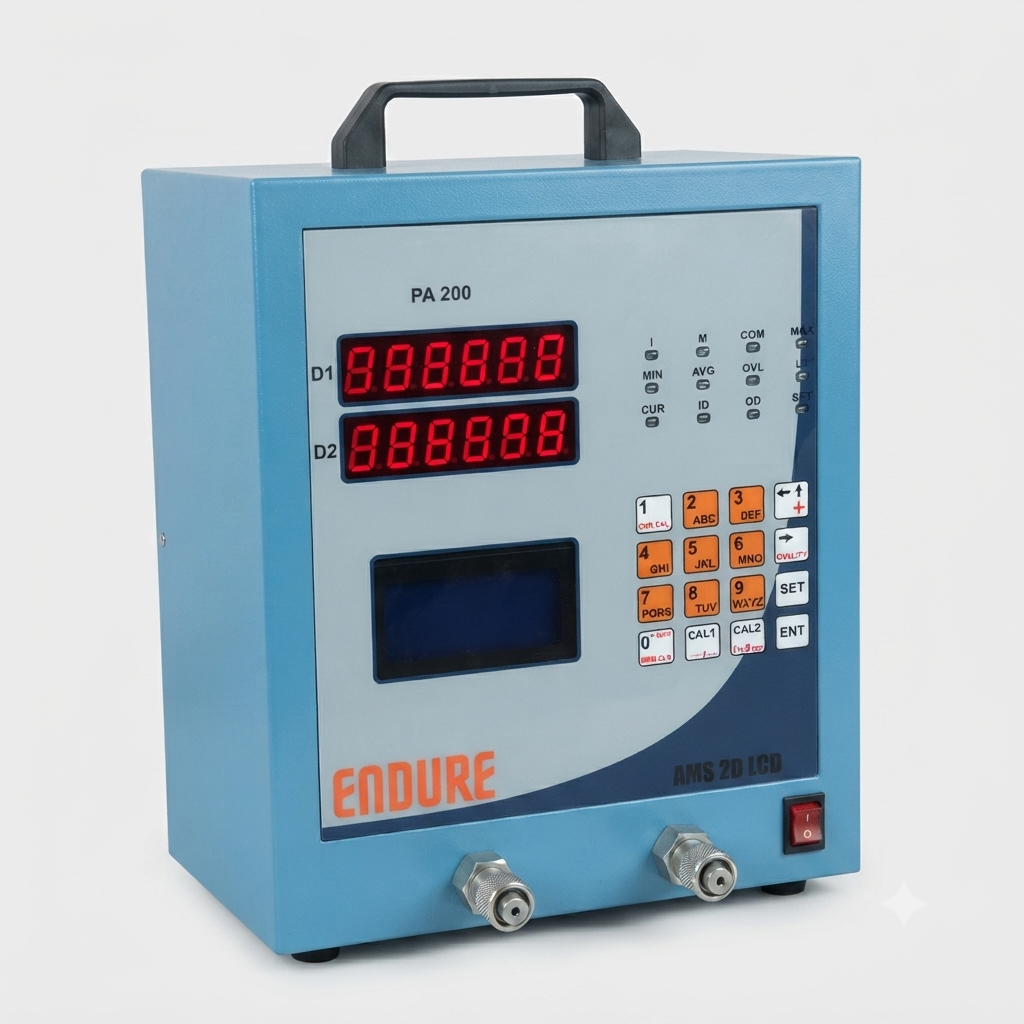

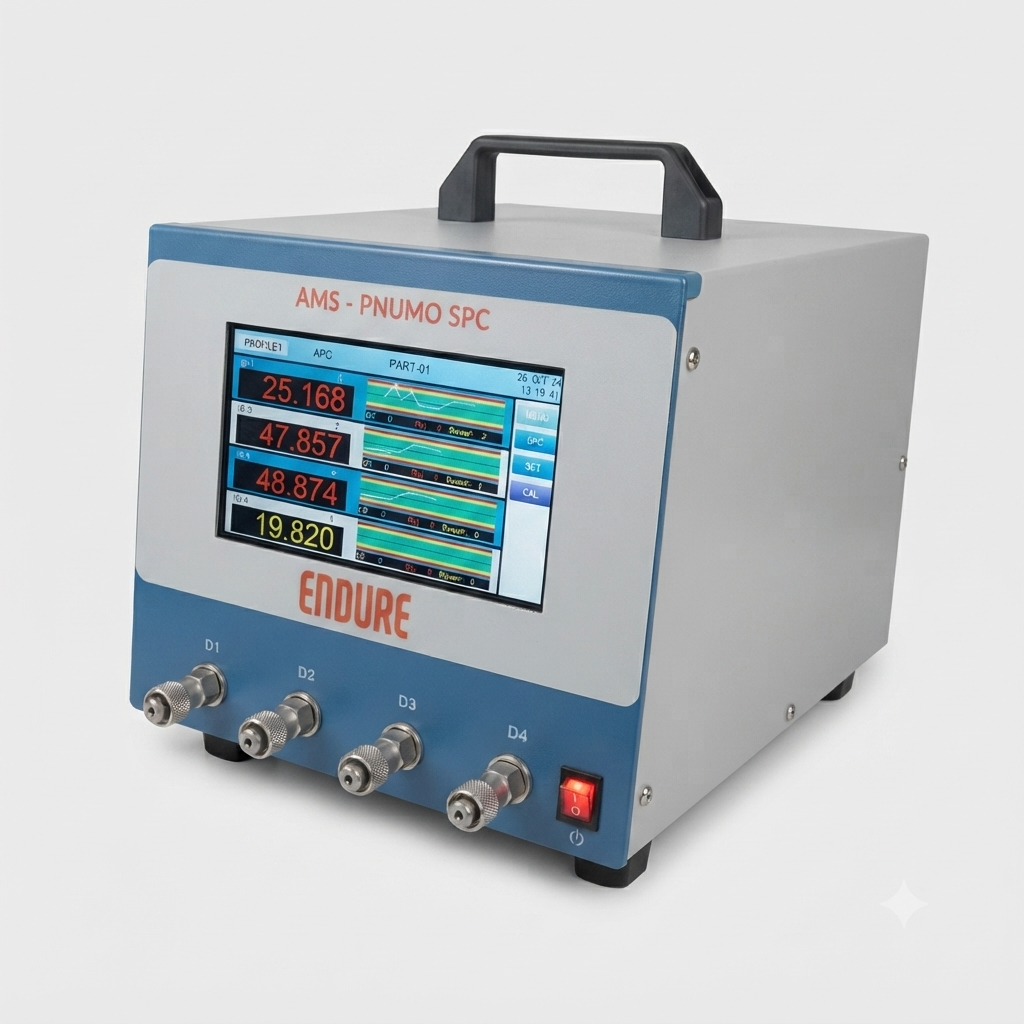

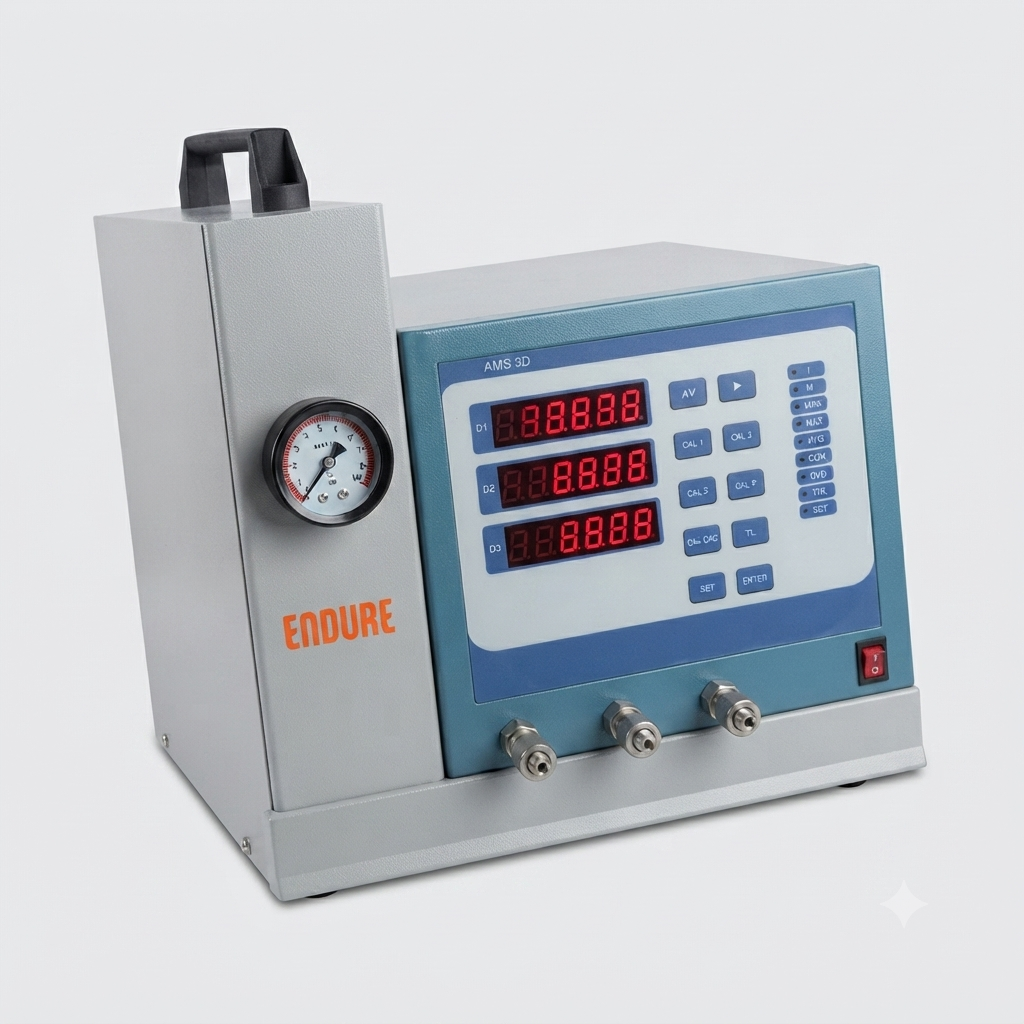

Electronic / Digital Display Units

Electronic / Digital Display Units are precision electronic air gauging systems designed for accurate, fast, and easy-to-read dimensional measurement. These units are available with 7-Segment Tri-Coloured Displays in both single-channel and multi-channel configurations for a wide range of industrial inspection applications.

Available as Single Channel / Display Air Electronic Units and Multi-Channel / Display Electronic Units, these systems support up to 16 display channels. Piezoelectric sensor-based technology provides precise and repeatable measurements with absolute and comparative measurement capabilities.

• Available in 7-Segment Tri-Coloured Single Channel / Display Air Electronic Units and Multi-Channel / Display Electronic Units.
• Channels: Available from Single Channel Display up to 16 Displays / Channels.
• Piezoelectric Sensor-Based Unit for accurate and repeatable measurement.
• Measuring Range: ±0.070 mm.
• Available Resolutions: 0.0001 mm, 0.0005 mm, and 0.001 mm.
• Supports Absolute / Comparative Measurement.
• Auto Calibration Facility for quick and convenient calibration.
• Double Master Calibration Facility for reliable measurement setup.
• PC Connectivity with RS-232 Standard Interface, Auto Mode, and Foot Switch Facility.
• Measurement Units: MM and Inch.
• Supports Static / Dynamic Reading.
• Power Supply: 230 Volt AC.
• Numeric Display: 1″ 6-Digit, 7-Segment Tri-Colour Display.
• Air Dryer with Auto Drain Filter Regulator Set.
